ISO standard tear resistant nylon coal mine conveyor rubber belt conveyor belt

ISO standard tear resistant nylon coal mine conveying rubber belt conveyor belt Welcome to inquire us 1.Types:EP80-EP6302.Width:300MM-2300MM3.Thickness:4-50mm4.Tensile Strength:6MPA-25MPA StandardsGB/T7984-2001, GB/T10822-2003, DIN22102, AS1332,JISK6322 etc FeaturesExcellent heat & abrasion resistant cove

Featured Products

ISO standard tear resistant nylon coal mine conveying rubber belt conveyor belt

ISO Standard Tear Resistant Nylon Coal Mine Conveying Rubber Belt Conveyor Belt

 Welcome to inquire us

1.Types:EP80-EP630
2.Width:300MM-2300MM
3.Thickness:4-50mm
4.Tensile Strength:6MPA-25MPA



Standards

GB/T7984-2001, GB/T10822-2003, DIN22102, AS1332,JISK6322 etc



Features

  • Excellent heat & abrasion resistant cover rubber compound
  • Perfect to protect conveyor belt from cracking and hardening by heat
  • Specially heat-treated and dipped fabric for reducing carcass shrinkage by heat ageing
  • Rubber cover and carcass capable to withstand high temperature

 Specifications



GradeTensile StrengthElongation at BreakMaximum Abrasion LossPolymer / RubberWorking Temperature RangeApplication
Heat ResistanceMpa% MinimumMM3 Degrees
HRT112350%200SBR Blend+ 100 Max for FinesFor hot materials such as crushed cement, foundry sand, fertilizers, clinker, coke etc.
     + 125 Max for Lumps
HRT212350%180SBR Blend+ 125 Max for FinesFor hot materials upto 150 deg. Centigrade such as crushed cement, foundry sand, fertilizers, clinker, sinter, slack, coke etc.
     + 150 Max for Lumps
HRT313350%130EPDM+ 150 Max for FinesVery hot & abrasive materials as above upto 200 deg. centigrade
     + 200 Max for Lumps




Types:
RT-HR1  RT-HR2 RT-HR3



Specifications:

Type

Belt Surface Temperature

Application

1

50C~100C

Suitable for the condition that requires heat resistant, but the materials' temperature is not so high.

2

<=125C

Suitable for the condition that requires abrasion resistant, the materials' temperature is proper, or for powdery materials with a not too high temperature.

3

<=150C

Suitable for the condition that requires high temperature resistant and high abrasion resistant

4

150~200C

Suitable for the condition that requires high temperature resistant and high abrasion resistant



Fabric specsPly thickness (mm/P)N/mmCover thickness
Strength series
2 ply3 ply4 ply5 ply6 plyUpperBottom
EP-800.8160240320400480   2.0~8  0~4.5
EP-1250.85250375500625750
EP-1500.9300450600750900
EP-1600.9320480640800960
EP-2001.0540060080010001200
EP-2501.25500750100012501500
EP-3001.35600900120015001800
EP-3501.5-1050140017502100
EP-4001.8--160020002400
EP-5002--200025003000

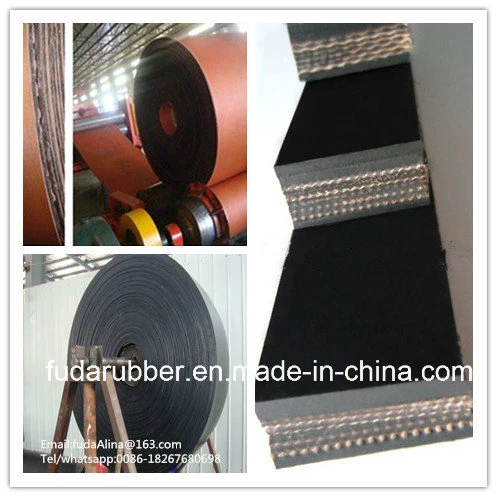

Our production
ISO Standard Tear Resistant Nylon Coal Mine Conveying Rubber Belt Conveyor Belt

More pruduct

ISO Standard Tear Resistant Nylon Coal Mine Conveying Rubber Belt Conveyor Belt

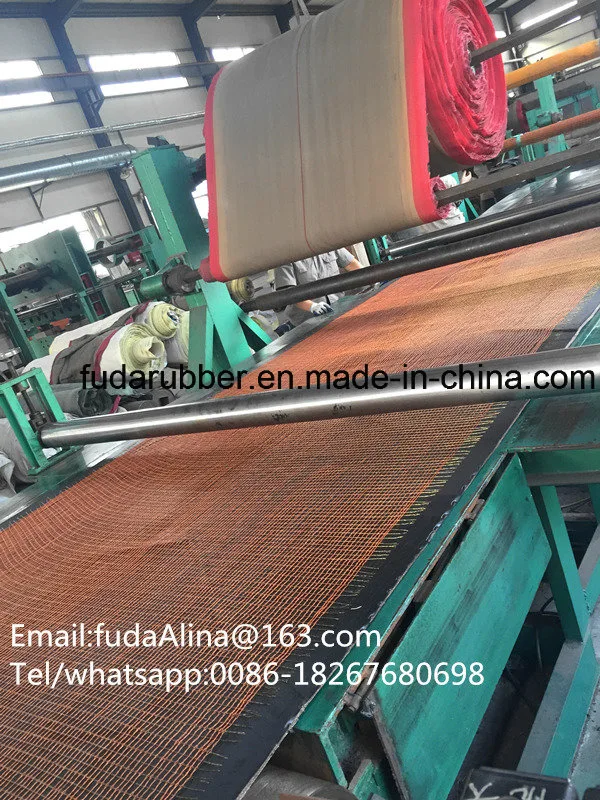

Workshop
ISO Standard Tear Resistant Nylon Coal Mine Conveying Rubber Belt Conveyor Belt

Testing room
ISO Standard Tear Resistant Nylon Coal Mine Conveying Rubber Belt Conveyor Belt

For more details,please inquiry us!

Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts

Conveyor roller, idler

Conveyor Pulley, frame,bracket  etc
