Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor

 Our company is based on the mining crushing and aggregate industry, and has accumulated a lot of experience and optimization measures for the use of bulk material conveying equipment. With continuous technical innovation and practice, it took two years to create the SKE series of fixed belt conveyors that customers ar

Featured Products

 Our company is based on the mining crushing and aggregate industry, and has accumulated a lot of experience and optimization measures for the use of bulk material conveying equipment. With continuous technical innovation and practice, it took two years to create the SKE series of fixed belt conveyors that customers are most satisfied with.

SKE series fixed belt conveyor is a bulk material conveying equipment with excellent performance, strong power, beautiful appearance and complete functions. Our company adopts the concept of modular design + warehouse-type stocking, and creatively achieves the ultimate goal of good quality ,low price and fast delivery.
Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor


Applications:

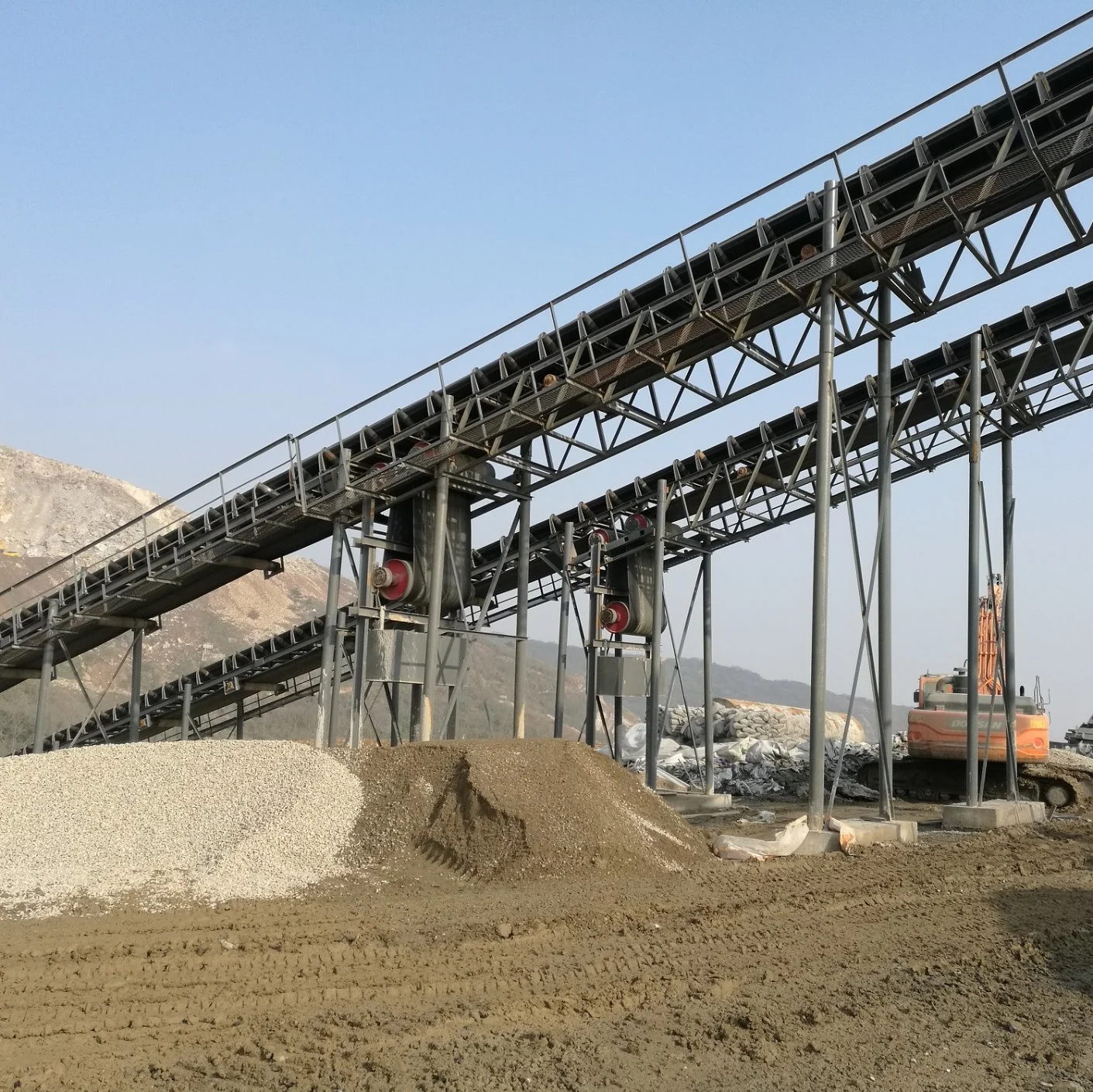

It is widely used in metallurgy, mining, coal, ports, power stations, building materials, chemicals, light industry, machinery, petroleum and other industries.

Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor

Features:

1.Strong power, cost saving, noise reduction, environmental protection, safety and reliability;
2.Reducing resistance, improving accuracy, extending life, safety and reliability;
3.  Professional design Real material and compact structure Excellent performance;
4.  Constant pressure, clean, clean, patented design, worry-free maintenance;
5. Modular design; This management concept creatively achieves the ultimate goal of cheap and fast delivery of the SKE series fixed belt conveyor
6. Ingenuity, convenient installation, refusal to welding, rapid prototyping;
7. Application of C-type main frame: The SKE series uses steel plates to be bent into C-type main frame. Compared with traditional hot-rolled channel steel main frames, the cross-section height is higher, the bending resistance is stronger, the weight is lighter, and the appearance is more Beautiful.
8. Application of endless adhesive tape: SKE series uses nylon core endless adhesive tape. The use of endless adhesive tape will reduce the installation time on site, improve the quality level of adhesive tape joints, and improve the overall strength of adhesive tape.


Specifications--Table One
ModelBelt width(mm)Angle(°)Recommended Angle(°)Belt Speed(m/s)Recommended Belt Speed(m/s)Capacity(t/h)
SKE505000~18°0,3,6,9,12,15,180.8,1.0,1.25,1.61.6160
SKE656500~18°0,3,6,9,12,15,180.8,1.0,1.25,1.6,2.01.6290
SKE808000~18°0,3,6,9,12,15,180.8,1.0,1.25,1.6,2.0,2.5,3.151.6450
SKE10010000~18°0,3,6,9,12,15,180.8,1.0,1.25,1.6,2.0,2.5,3.151.6700
SKE12012000~18°0,3,6,9,12,15,180.8,1.0,1.25,1.6,2.0,2.5,3.151.61000
SKE14014000~18°0,3,6,9,12,15,180.8,1.0,1.25,1.6,2.0,2.5,3.151.61500
Remarks:The conveying capacity is calculated according to the material bulk density of 1.6t / m3, the operation stacking angle of 20 °, the idler groove angle of 35 °, and the belt speed of 1.6m / s

Specification talbe Two: Processing Capacity(t/h)
Belt Width/mmInclined Index (k)Material bulk density /(t/m3)Processing Capacity in different Speed/(t/h)
   0.81.0 1.251.62.0 2.53.15
5000.851.680 100 125 160 200 250
6500.851.6140 180 230 290 360 450 570
8000.851.6230 280 360 450 560 700 900
10000.851.6370 460 580 700 900 1100 1400
12000.851.6550 650 850 1000 1300 1600 2000
14000.851.6700 900 1100 1500 1900 2300 2900
Remarks:0~2,1;3~4,0.99;5~6,0.98;7~8,0.97;9~10,0.95;11~12,0.93;
13~14,0.91;15~16,0.89;17~18,0.85
 SKE Design
SKE is focusing on bulk material handling conveyor system and solution design,   for more information contact us please via:
Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor
Manufacturing of belt conveyor
Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor

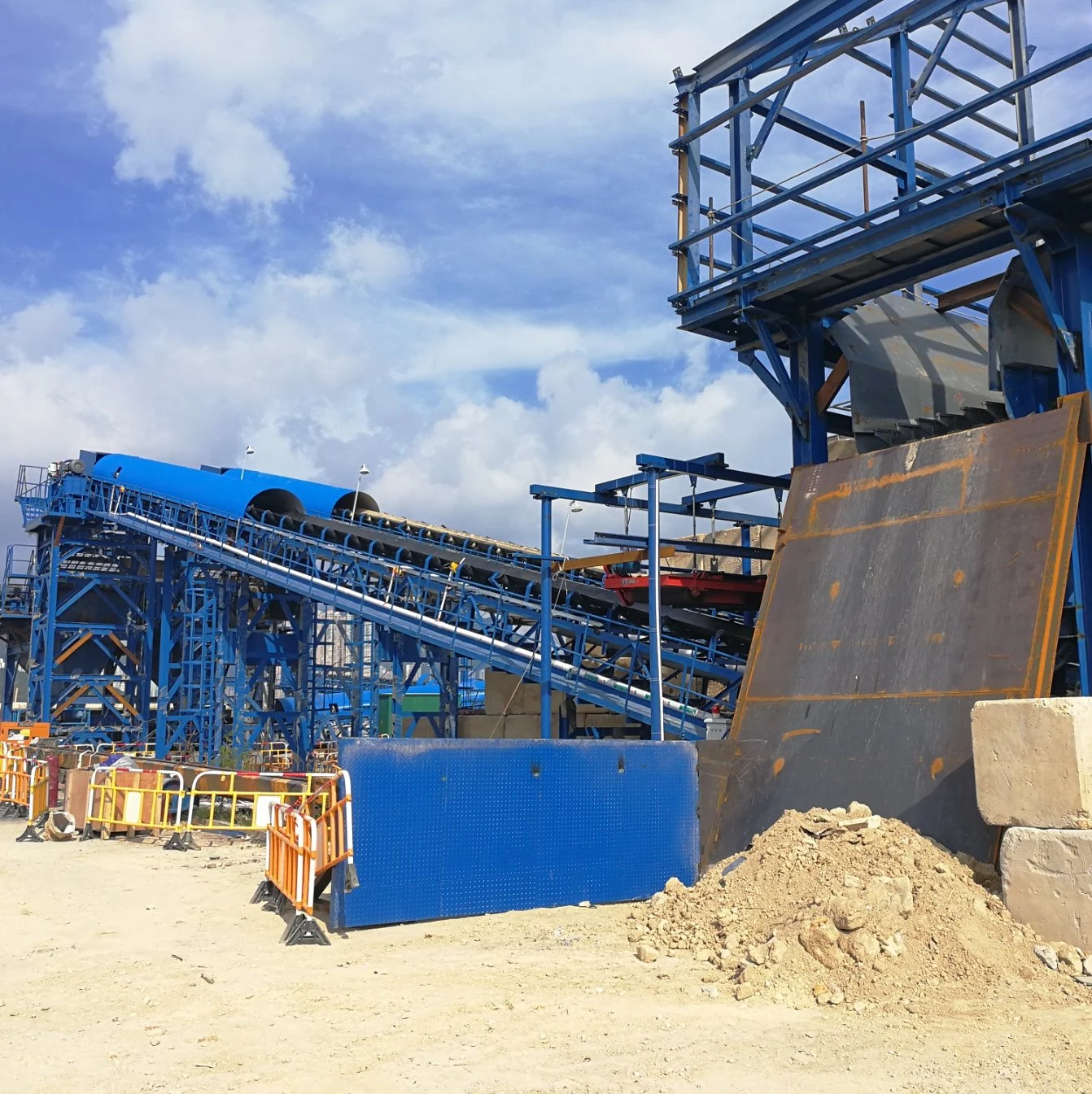

Installation of belt conveyers
Ske Fixed Belt Conveyor/Mining Belt Conveyor/Coal Belt Conveyor
