Hot Oil Heating 20ft / 40ft Bitumen/Asphalt/Pitch Storage Tank Manufacturer
1.Specification for Asphalt Bitumen iso tank container:
Our storage silo are mounted on steel skids that bolt to concrete foundations.
Equipped with diesel burner and temperature controller, the temperature controller shut down the burner when the asphalt temperature reaches set temperature, and will restart the burner when the asphalt temperature drops.
Our storage tanks have serpentine heating coils, liquid asphalt in the tank is indirectly heated by hot thermal oil flowing through the coils.
The exhaust pipes are also serpentine in the tanks to be used to heat up the asphalt, which saves the fuel.
A manway is located in the top of each compartment. An access ladder is provided on the outside of the tank and inside each compartment. Each compartment also has a combination vent and overflow pipe.
An valve in the bottom of each compartment allows the tank to be completely drained.
All our tanks are covered with fiberglass insulation, temperature drop is no more than 10% of the atmospheric temperature changes in 24 hours.
The tanks are provided with bitumen pumps and unloading pocket so it can be easy used either loading your equipment or being recharged by a transport container.
1.Specification for Asphalt Bitumen iso tank container:
Our storage silo are mounted on steel skids that bolt to concrete foundations.
Equipped with diesel burner and temperature controller, the temperature controller shut down the burner when the asphalt temperature reaches set temperature, and will restart the burner when the asphalt temperature drops.
Our storage tanks have serpentine heating coils, liquid asphalt in the tank is indirectly heated by hot thermal oil flowing through the coils.
The exhaust pipes are also serpentine in the tanks to be used to heat up the asphalt, which saves the fuel.
A manway is located in the top of each compartment. An access ladder is provided on the outside of the tank and inside each compartment. Each compartment also has a combination vent and overflow pipe.
An valve in the bottom of each compartment allows the tank to be completely drained.
All our tanks are covered with fiberglass insulation, temperature drop is no more than 10% of the atmospheric temperature changes in 24 hours.
The tanks are provided with bitumen pumps and unloading pocket so it can be easy used either loading your equipment or being recharged by a transport container.
| 1. Exterior | Box Type - 20FT |
| 2. Tank Shape | Step Shape - Horizontal |
| 3. Maximum Capacity | 25 CBM |
| 4. Dimension | 6058 x 2438 x 2591 mm |
| 5. Curb Weight | 4000 kg |
| 6. Payload | 25000 kg - Water load at 20ºC |
| 7. Working Temperature | 250ºC |
| 8. Working Pressure | 0.09 Mpa |
| 9. Temperature Lapse Rate | ≤12 (ºC/24h) - Feeding Temperature≥120ºC |
| 10. Tank Materials | GB Q345B |
| 11. Thickness | 5 mm |
| 12. End Enclosure | 5 mm - Flanged Flat Head |
| 13. Washplate | 4 mm - 2 Compartments 1 Bin |
| 14. Heating Pipe | Ø57*3.5 mm - L=77000 |
| 15. Compound Manhole | DN500 |
| 16. Sheet Gasket | PTFE |
| 17. Asphalt Protective Frame | 800*750*150 mm - With Asphalt Flooding Pipe DN50 |
| 18. Thermometer | 0~300 ºC |
| 19. Volumeter | Ball Floating Type |
| 20. Asphalt Discharge Valve | DN80 |
| 21. Quick Coupling | DN80 |
| 22. Flange Hole of Heating Pipe | DN50 - 2pcs |
| 23. Insulated Layer | 100 mm - Glass Fiber Wool |
| 24. Exterior Close Plate | 1.5 mm - Cold-rolled Plate |
| 25. Ladder | W = 400 mm |
2. The functions of this series container tanker:
1. The tank container can be loaded and unloaded from the top and the bottom. On a standard tank container there is a manhole and at least one valve on the top, and there is a valve at the bottom. Loading and unloading is done by connecting hoses of the loading and unloading facility to the valves of the tank.
2. The loading or unloading is often done using a pump. Depending on the installation and regulation of certain products, it is determined how the tank container should be loaded or unloaded.

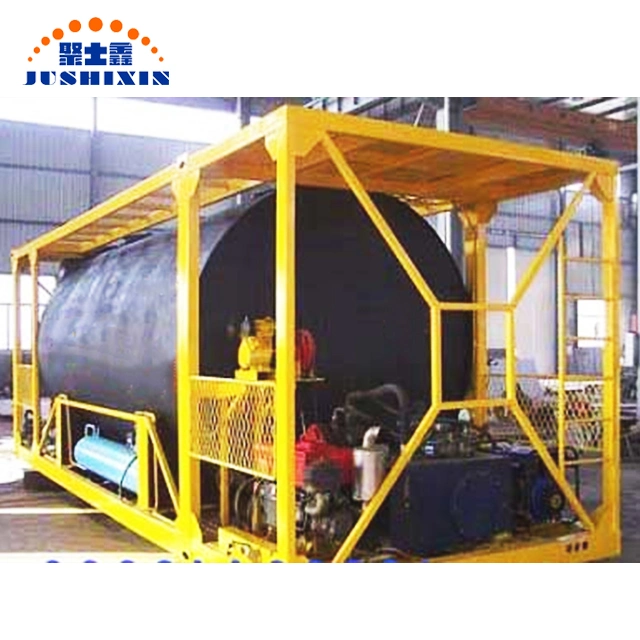

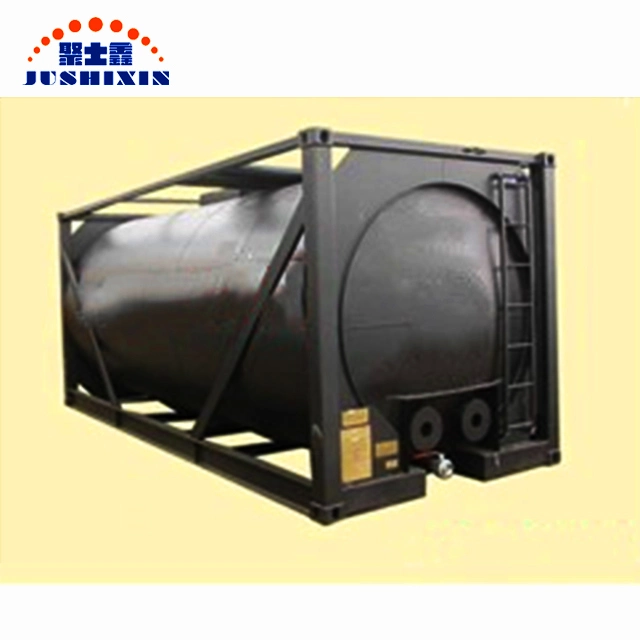

3.Product pictures about Asphalt Bitumen iso tank container:
4. Detailed images for Asphalt Bitumen iso tank container:
5:Company profile:
Henan Jushixin Transportation Equipment Co.,Ltd is located in Zhengzhou, Henan Province, China, with a registered capital of 3,500,000USD.Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tank container, electrical heating tank container, reefer tank container, food grade tank container, bitumen tank container and 10ft tank container, offshore tank container, IBC/SBC ,etc. we have riched production and sales experience and we are specialized in the R & D, mass production and sales of semi trailers as well as other transportation equipment. Based on convenient transport advantages and resource of Central China, Jushixin is committed to supply high quality and cost-effective equipment for clients all over the world. We have a strict quality inspection department, and a safe and complete product packaging. Strong production capacity, can complete production and delivery within 30 days. we have built a long business relationship with many world famous enterprises.please contact us if any interset.
6:Our service and packing&shipping
Our service
1 Offering the one-stop full lifecycle services;
2 CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
3 Small Order Can Be Accepted;
4 Any Color & Logo Available;
5 The Product Dimension + Specifications Can Be Designed As Your Needs.
Packing
1 .Nude,These ISO Storage Tank Containers will be shipped via Container Vessel,will save a lot of money for you
2 Customized according to your requirement
Shipping
Port: Tianjin, Qingdao, Shanghai,Guangzhou or other ports according to your requirements.
sea fight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping;etc.
7.Related Products
8:Our factory
9:Customers' visits
10: FAQ
Q:Do you provide OEM Service?
A:Yes, we have a first-class team and could design as your requirement.
1. The tank container can be loaded and unloaded from the top and the bottom. On a standard tank container there is a manhole and at least one valve on the top, and there is a valve at the bottom. Loading and unloading is done by connecting hoses of the loading and unloading facility to the valves of the tank.
2. The loading or unloading is often done using a pump. Depending on the installation and regulation of certain products, it is determined how the tank container should be loaded or unloaded.
3.Product pictures about Asphalt Bitumen iso tank container:
4. Detailed images for Asphalt Bitumen iso tank container:
5:Company profile:
Henan Jushixin Transportation Equipment Co.,Ltd is located in Zhengzhou, Henan Province, China, with a registered capital of 3,500,000USD.Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tank container, electrical heating tank container, reefer tank container, food grade tank container, bitumen tank container and 10ft tank container, offshore tank container, IBC/SBC ,etc. we have riched production and sales experience and we are specialized in the R & D, mass production and sales of semi trailers as well as other transportation equipment. Based on convenient transport advantages and resource of Central China, Jushixin is committed to supply high quality and cost-effective equipment for clients all over the world. We have a strict quality inspection department, and a safe and complete product packaging. Strong production capacity, can complete production and delivery within 30 days. we have built a long business relationship with many world famous enterprises.please contact us if any interset.
6:Our service and packing&shipping
Our service
1 Offering the one-stop full lifecycle services;
2 CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
3 Small Order Can Be Accepted;
4 Any Color & Logo Available;
5 The Product Dimension + Specifications Can Be Designed As Your Needs.
Packing
1 .Nude,These ISO Storage Tank Containers will be shipped via Container Vessel,will save a lot of money for you
2 Customized according to your requirement
Shipping
Port: Tianjin, Qingdao, Shanghai,Guangzhou or other ports according to your requirements.
sea fight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping;etc.
7.Related Products
8:Our factory
9:Customers' visits
10: FAQ
Q:Do you provide OEM Service?
A:Yes, we have a first-class team and could design as your requirement.
Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and Railway?
A:Yeah,of course, but the price will be very different by different transportation ways; So kindly please let me know your exact transportation ways before the quoting; And also the certificates will be ready after the tank container passed all kinds of the testing &inspection.
Q: Can you provide the drawing for confirmation?
A:Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume liquid Chlorine Tank Container?
A:Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
Q: Can I do your agent in our country or some district?
A:Yes,if you quantity is enough, no problem, the 50 units for the first time is okay.
Q: What if my question that wasn't answered in the FAQ?
A: Contact me or choose the sales to consult directly. We're always happy to help!
